Dongfeng 4*2 Tipper Truck

Place of Origin : CHINA

Brand Name : CLW

MOQ : 1

Price : 15000-35000 per unit

Specification : 10tons

HS Code : 8570909090

Drive Wheel : 4×2

Tire Design : Radial

Condition : New

Testing : Products Injection Before Shipment

Color : as Customer's Request

Model NO. : CLW6688ZXCA08

Dumping Type : Front Lifting Style

Load Capacity : 1-10t

Lifting Type : Middle Lifting, Front Lifting

Chassis : Dongfeng, Sinotruck, Chacman, Is Uzu, Camc, etc.

Seats : ≤5

Production Capacity : 500pieces/Month

Name : Tipper Dump Truck

Usage : Transportations of Mineral, Stone, Sand and So on

Transport Package : Naked, Waxed, Bulk Ship, RO-RO

Tire Certification : ECE, GCC, ISO

Tire : Radial Tire 12.00r20 or Tubeless Tire 12r22.5

Trademark : CLW

Engine Capacity : 4-6L

Origin : Suizhou, China

Thickness of The Box : Side 3mm, Bottom 4mm

Dump Material : Carbon Steel Q235

Emission Standard : Euro 3

Model Number : CLW

Payment Terms : 50% Deposit,Balance should be paid before ship out

Supply Ability : 10unit per month

Engine : 170HP

Warrenty : 1 Year

Horsepower : 150-250hp

Contact Now

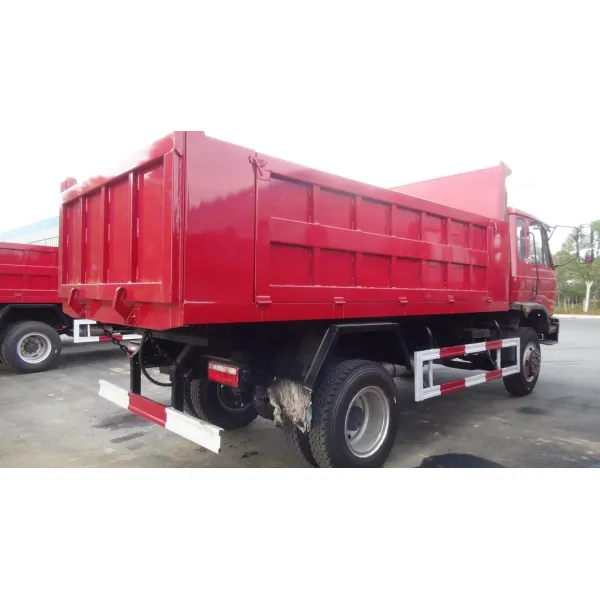

Dongfeng 4*2 10tons Diesel Light Dump/Tipper Truck Minery Transportation Construction Lorry Truck
Product description:
  • Truck chassis brand of dump truck: SINOTRUK HOWO, CAMC, SHACMAN, JAC, NORTH-BENZ, IS UZU, FOTON, etc.
  • Tipping Model of dump truck: Front-tipping, Middle-tipping.
  • Hydraulic oil cylinder brand of dump truck: International brand HYVA or Chinese famous brand.
  • High tensile steel for dumper materia of dump truck: 4mm, 6mm, 8mm,10mm or as per customer's request.
  • Used in Construction or Mineral site for Transportation of mineral, stone, sand, garbage and etc.
Specification of dump truck:
ITEM UNIT PARAMETERS
Product Dump truck
Cabin Left hand drive, without air conditioning
Body internal dimensions mm 6500×2490×2850
Fact loading capacity kg 10000~15000
GVW kg 9900
Curb weight kg 5500
Dump body overall dimensions mm 4500×2300×800
Wheelbase mm 3950
F/R track base mm 1340/1590
Approach/departure angle 25/12
Power 96KW/129Hp, YUCHAI
Max speed km/h 90
Tire specification 9.00 Nylon
Traction system 4×2
Number of axles 2
Engine Type YUCHAO 129HP
Transmission 5 speed manual transmission
Electric system V 24
Operation control sysytem Electrically hydraulic control
Allowance passengers in cab 2
Dump body Size: 4500×2300×800
Side and front thickness: 3mm, Floor thickness: 4mm.
Middle tipping;
A complete set of Chinese famous brand hydraulic system
Dongfeng 4*2 Tipper Truck Dongfeng 4*2 Tipper Truck Dongfeng 4*2 Tipper Truck Dongfeng 4*2 Tipper Truck
Dongfeng 4*2 Tipper Truck Dongfeng 4*2 Tipper Truck Dongfeng 4*2 Tipper Truck Dongfeng 4*2 Tipper Truck Dongfeng 4*2 Tipper Truck
